Locomotion

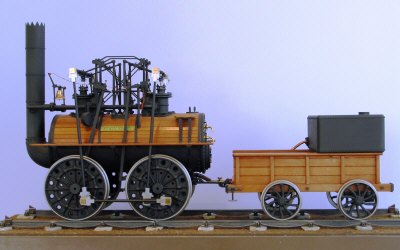

Locomotion 5"

The prototype was built in England in 1825 by George Stephenson for the Stockton & Darlington Railway which started in the same year as a commercially run railway. The preserved locomotive is on show at Darlington North Road Museum

  • 5'' gauge (127mm)
  • gas fired fire tube boiler, working pressure 3.5 bar
  • two vertical double acting cylinders, ΓΈ17mm, 54mm stroke
  • loose excentric valve gear
  • driving wheel diameter 112.5mm
  • weight including tender 11.5kg

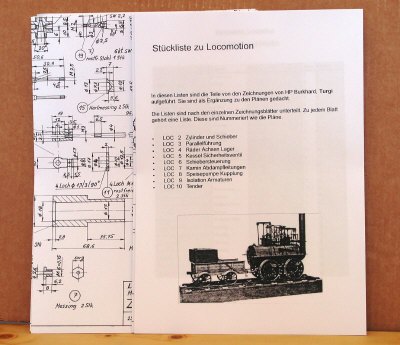

Complete set of metric drawings Locomotion

820100
  • Description
all items in scale 1:1, 10 sheets in A2

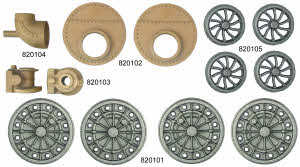

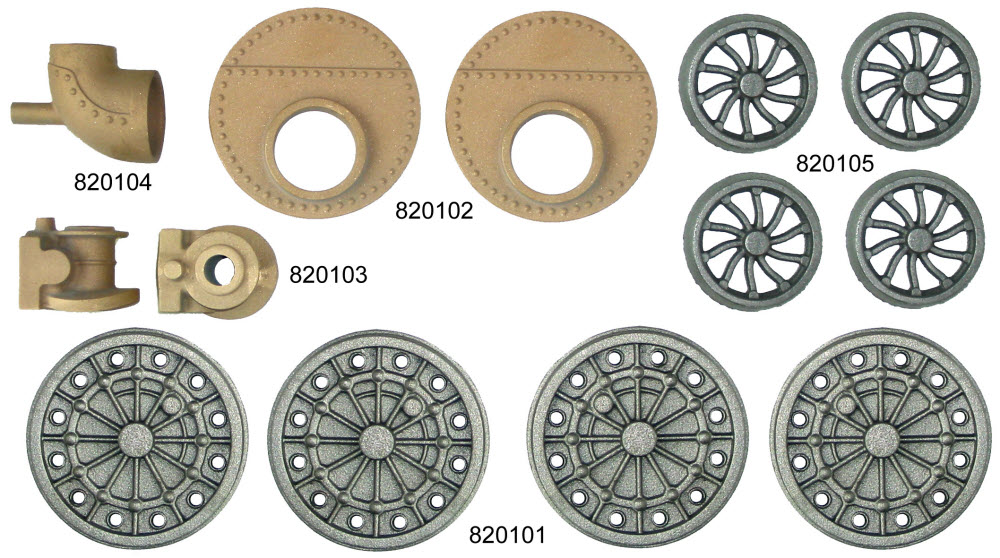

castings for Locomotion with tubes

GusssatzLocomotion


Single castings

  • Description

Single castings

Wheel, outer diameter: 115mm

820101
  • Description
  • cast iron
  • Locomotion set: 4x

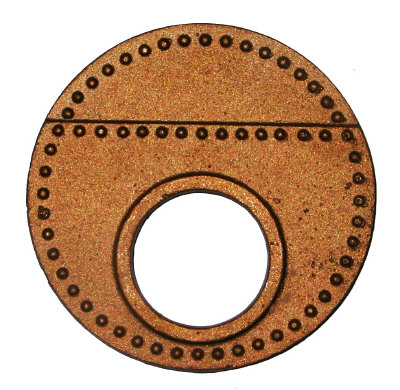

Boiler end plate

820102
  • Description
  • gunmetal
  • Locomotion set: 2x

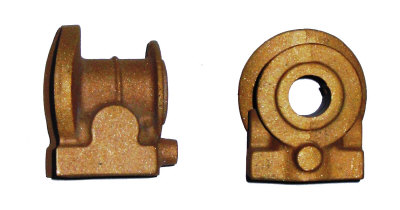

Cylinder block

820103
  • Description
  • gunmetal
  • Locomotion set: 2x

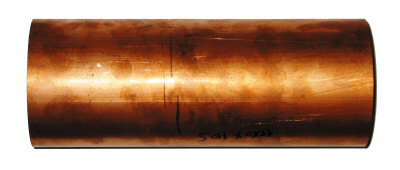

Boiler tube

820107
  • Description
  • copper
  • 105x100x270mm
  • Locomotion set: 1x

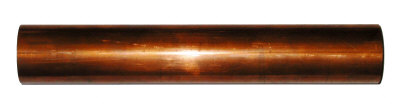

Fire tube

820108
  • Description
  • copper
  • 50x45x300mm
  • Locomotion set: 1x

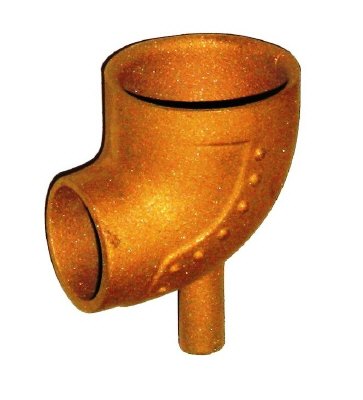

Chimney base elbow

820104
  • Description
  • gunmetal
  • Locomotion set: 1x

Wheel, outer diameter: 69mm

820105
  • Description
  • cast iron
  • Locomotion set: 4x
