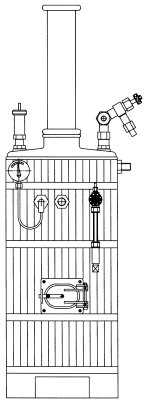

Kesselansicht

Boiler for Anna und Gloria

for do it yourself

  • Hight 364mm
  • Pressure 4 bar
  • Copper boiler tube ø 104x2 / 221mm
  • Fire box ø 80x100mm


Metric drawing boiler by W. Schneeberger

810951
  • Description
  • showing all items on scale
  • with part list
    • Zoom

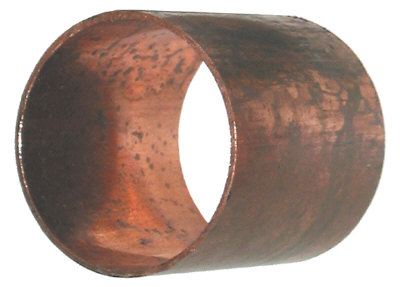

    Fire box tube in copper

    810956
    • Description
    Tube 84x2mm, lenght 89mm
    Zoom

    2.5m Copper tube 2.5m Copper tube

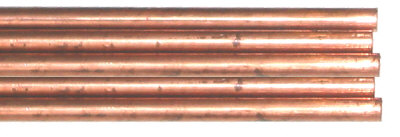

    810957
    • Description
    Tube 8x1.5mm, 5 pieces, lenght 0.5m
    Zoom

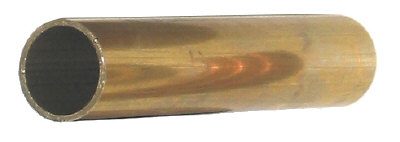

    Brass tube for chimney

    810958
    • Description
    Tube 25x1.5mm, Lenght 132mm
    Zoom

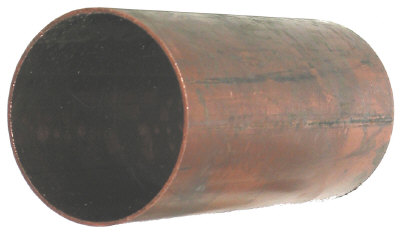

    Copper boiler tube

    810955
    • Description
    Tube 104x2mm, Lenght 221mm
    Zoom

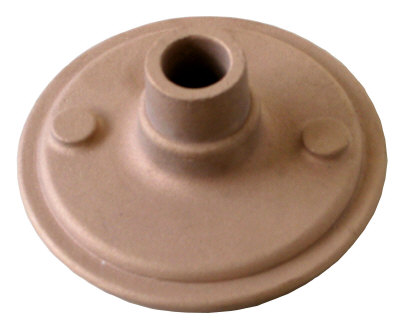

    Top for boiler, gunmetal

    810950
    • Description
    for tube 104x2mm
