Tigerli 5"

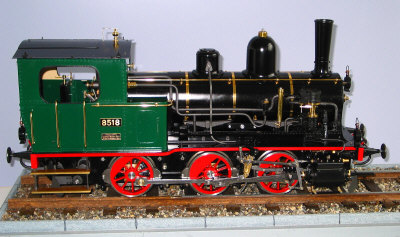

Model of a steam locomotive with good hauling and running capacities, not too difficult for a less experienced model engineer. The prototype was produced from 1902 to 1915 by the Swiss Locomotive Works of Winterthur in two versions for shunting and for passenger trains. Of the 82 engines some 20 have survived which are owned by museums or are run by historic steam railway societies of Switzerland

  • 5'' gauge (127mm)
  • copper boiler ø100mm, pressure 6 bar, coal firing, no superheater
  • water tank separated from the frame twin axle pump, vertical hand pump in the cab
  • two cylinders ø32mm, stroke 44mm
  • Walschaerts valve gear, slide valve
  • driving wheels ø92mm
  • approx. weight of the engine 40kg
Larger image

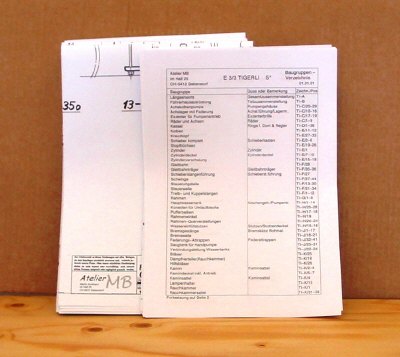

Complete set of metric drawingsTigerli 5"

830000
    Delivery time:5-7 days within Germany
  • Description
  • complete set
  • scale 1:1 or 2:1
  • 16 sheets in A1 size
  • inc part list in English
  • inc general arrangement sheets
Zoom

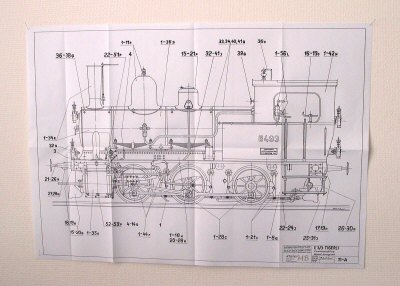

General arrangement Tigerli 5"

830100
    Delivery time:5-7 days within Germany
  • Description
  • will be deducted in case the complete set is ordered later
  • included in the complete set of metric drawings
Zoom

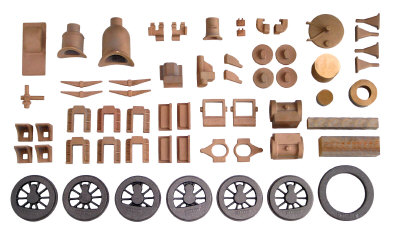

Set of castings for Tigerli 5"

    Delivery time:5-7 days within Germany


Single castings

  • Description

Single castings

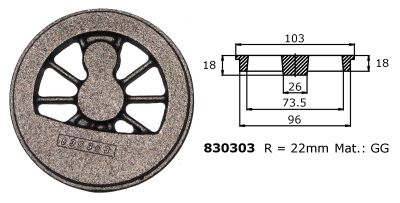

Wheel, outer diameter: 96mm

830303
    Delivery time:5-7 days within Germany
  • Description
  • cast iron
  • Tigerli set: 1x

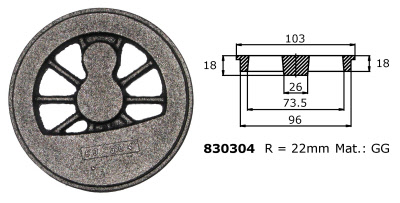

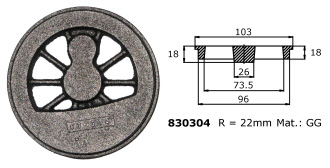

Wheel, outer diameter: 96mm

830304
    Delivery time:5-7 days within Germany
  • Description
  • cast iron
  • Tigerli set: 1x

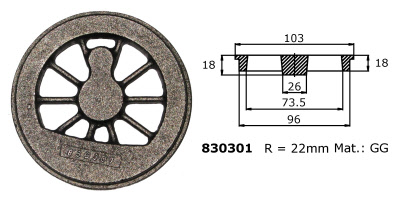

Wheel, outer diameter: 96mm

830301
    Delivery time:5-7 days within Germany
  • Description
  • cast iron
  • Tigerli set: 2x

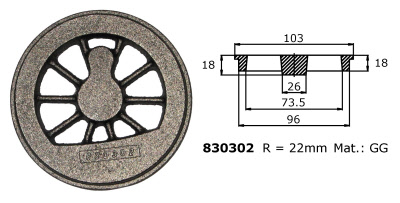

Wheel, outer diameter: 96mm

830302
    Delivery time:5-7 days within Germany
  • Description
  • cast iron
  • Tigerli set: 2x
Larger image

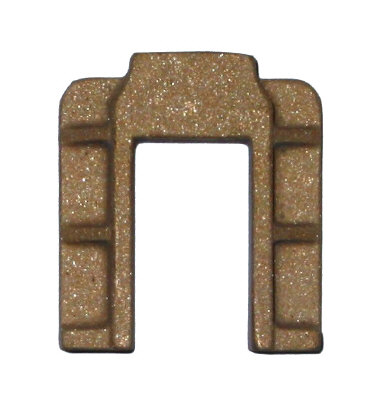

Main horn

830313
    Delivery time:5-7 days within Germany
  • Description
  • gunmetal
  • Tigerli set: 6x
Larger image

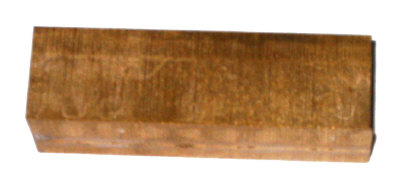

Bar for 6 axle boxes, upper part

830310
    Delivery time:5-7 days within Germany
  • Description
  • RG-7
  • Tigerli set: 1x
Larger image

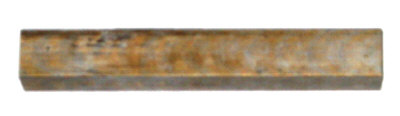

Bar for 6 axle boxes, lower part

830311
    Delivery time:5-7 days within Germany
  • Description
  • RG-7
  • Tigerli set: 1x
Larger image

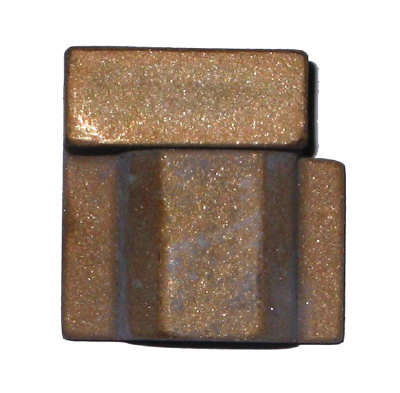

Feed pump body

830320
    Delivery time:5-7 days within Germany
  • Description
  • gunmetal
  • Tigerli set: 1x
Larger image

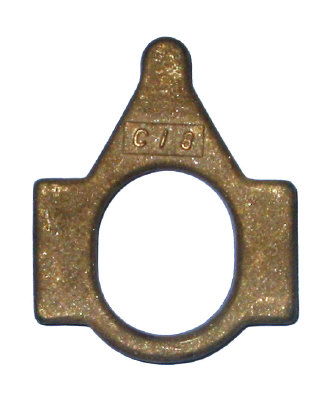

Eccentric strap

830318
    Delivery time:5-7 days within Germany
  • Description
  • gunmetal
  • Tigerli set: 2x
Larger image

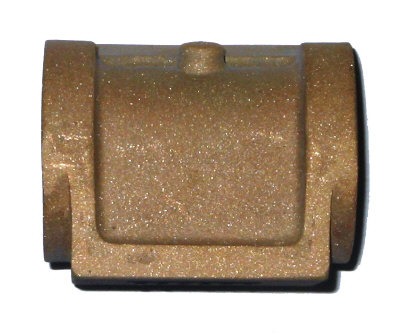

Cylinder

830501
    Delivery time:5-7 days within Germany
  • Description
  • gunmetal
  • Tigerli set: 2x
Larger image

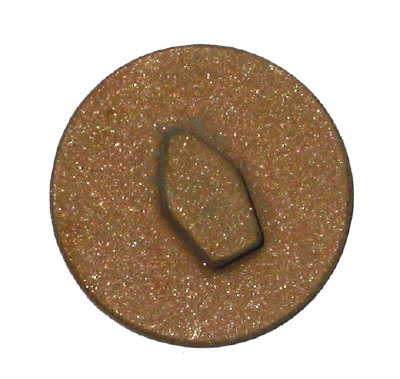

Cylinder cover

830507
    Delivery time:5-7 days within Germany
  • Description
  • gunmetal
  • Tigerli set: 4x

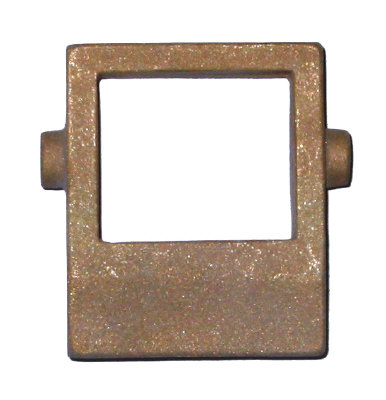

Steam chest

830502
    Delivery time:5-7 days within Germany
  • Description
  • gunmetal
  • Tigerli set: 2x

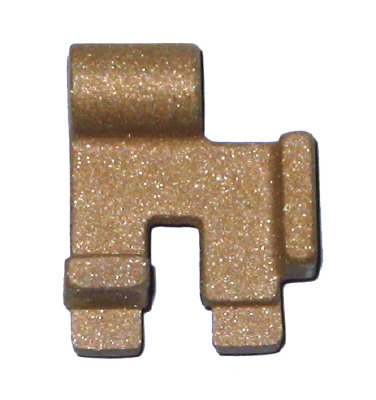

Motion bracket right hand

830635
    Delivery time:5-7 days within Germany
  • Description
  • gunmetal
  • Tigerli set: 1x

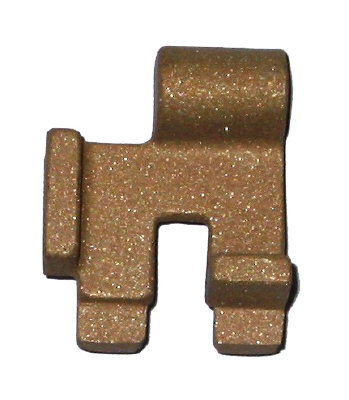

Motion bracket left hand

830636
    Delivery time:5-7 days within Germany
  • Description
  • gunmetal
  • Tigerli set: 1x
Larger image

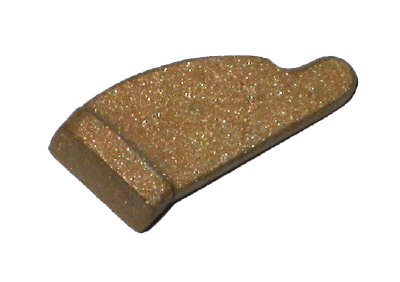

Valve spindle bearing

830627
    Delivery time:5-7 days within Germany
  • Description
  • gunmetal
  • Tigerli set: 2x
Larger image

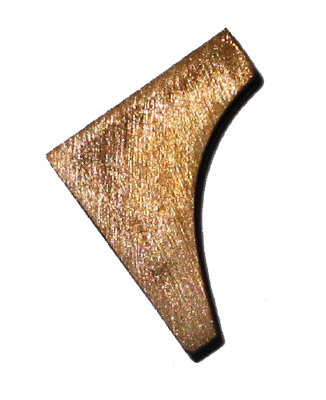

Frame angle

830819
    Delivery time:5-7 days within Germany
  • Description
  • gunmetal
  • Tigerli set: 4x
Larger image

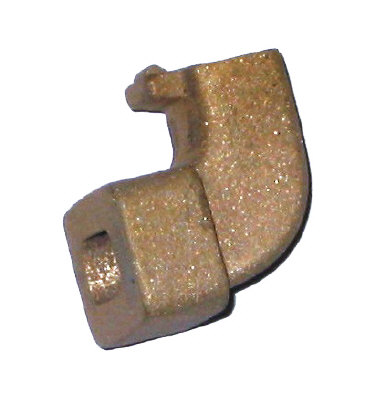

Tank filler

830815
    Delivery time:5-7 days within Germany
  • Description
  • gunmetal
  • Tigerli set: 2x
Larger image

Tank filler lid

830816
    Delivery time:5-7 days within Germany
  • Description
  • gunmetal
  • Tigerli set: 2x
Larger image

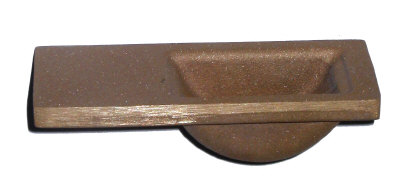

Pump mounting bracket

830814
    Delivery time:5-7 days within Germany
  • Description
  • gunmetal
  • Tigerli set: 1x
Larger image

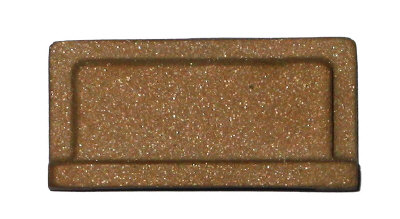

Tank bracket

830813
    Delivery time:5-7 days within Germany
  • Description
  • gunmetal
  • Tigerli set: 4x
Larger image

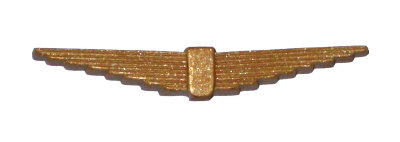

Main spring dummies

830932
    Delivery time:5-7 days within Germany
  • Description
  • gunmetal
  • Tigerli set: 4x
Larger image

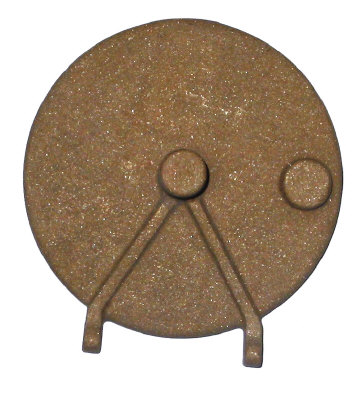

Smoke box door

831008
    Delivery time:5-7 days within Germany
  • Description
  • gunmetal
  • Tigerli set: 1x
Larger image

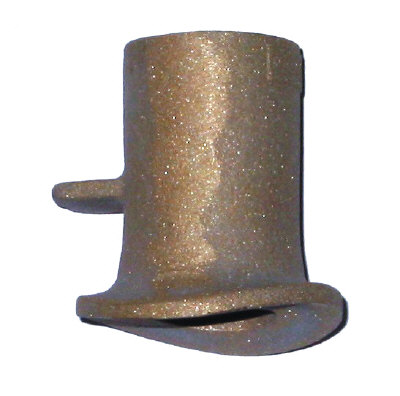

Chimney base

831004
    Delivery time:5-7 days within Germany
  • Description
  • gunmetal
  • Tigerli set: 1x

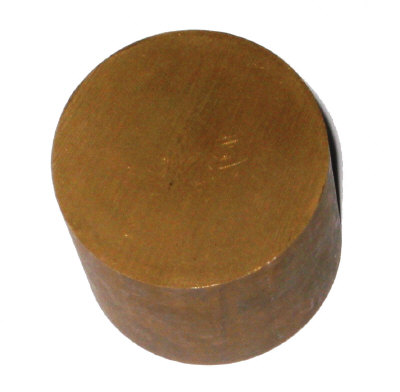

Bar for inner dome

831114
    Delivery time:5-7 days within Germany
  • Description
  • RG-7
  • Tigerli set: 1x
Larger image

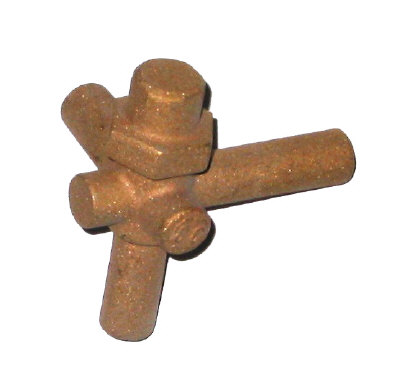

Manyfold body

831133
    Delivery time:5-7 days within Germany
  • Description
  • gunmetal
  • Tigerli set: 1x
Larger image

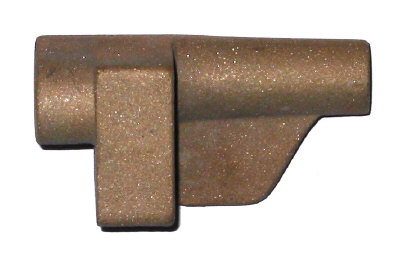

Pump body

831237
    Delivery time:5-7 days within Germany
  • Description
  • gunmetal
  • Tigerli set: 1x
Larger image

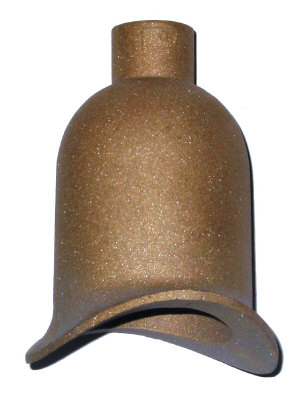

Outer dome

831501
    Delivery time:5-7 days within Germany
  • Description
  • gunmetal
  • Tigerli set: 1x
Larger image

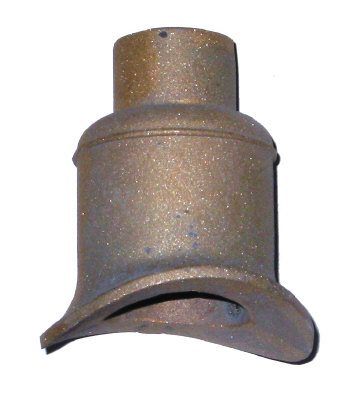

Top sand box

831515
    Delivery time:5-7 days within Germany
  • Description
  • gunmetal
  • Tigerli set: 1x
Larger image

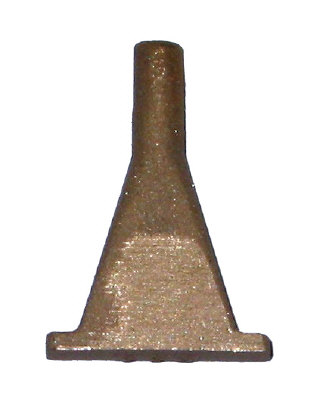

Buffer stock

831623
    Delivery time:5-7 days within Germany
  • Description
  • gunmetal
  • Tigerli set: 4x
Larger image

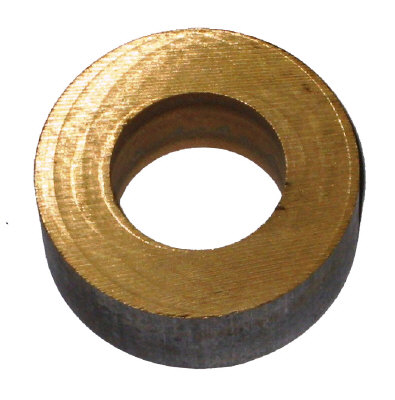

Bar for steamdome bush

830419
    Delivery time:5-7 days within Germany
  • Description
  • RG-7
  • Tigerli set: 1x
Larger image

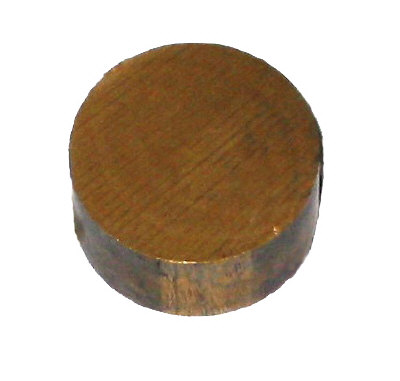

Bar for regulator bush

830409
    Delivery time:5-7 days within Germany
  • Description
  • RG-7
  • Tigerli set: 1x
Larger image

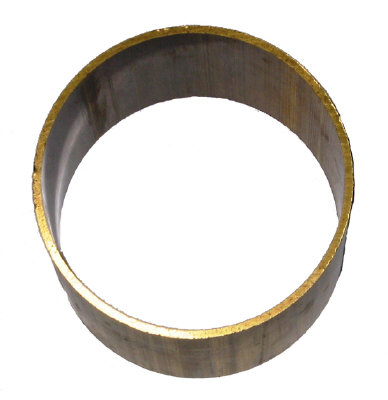

Tube for smoke box

830403
    Delivery time:5-7 days within Germany
  • Description
  • brass
  • 105x100x78mm
Larger image

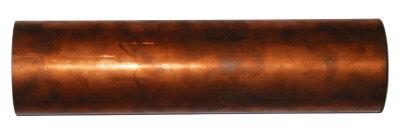

Boiler tube

830402
    Delivery time:5-7 days within Germany
  • Description
  • copper
  • 100x95x385mm
