Riveting tool castings
Castings for riveting tools and detailed drawing 1:1 metric or imperial system. The mechanical part is identical of al sizes so that only one unit is to be produced
!

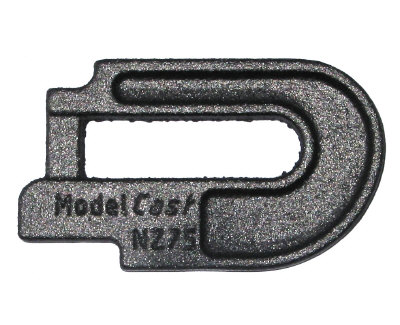

Drawing and casting for riveting tool, scope 75mm

!
807520
At the moment not available.

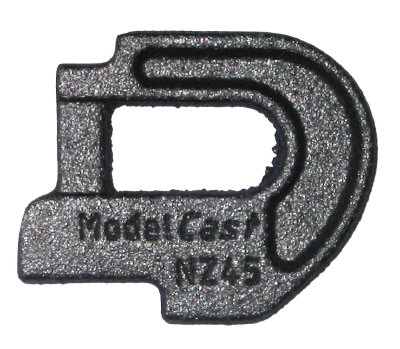

Drawing and casting for riveting tool, scope 45mm

!
804520

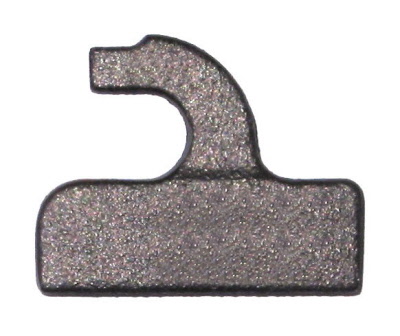

Drawing and casting for riveting tool, scope 12mm

!
801220

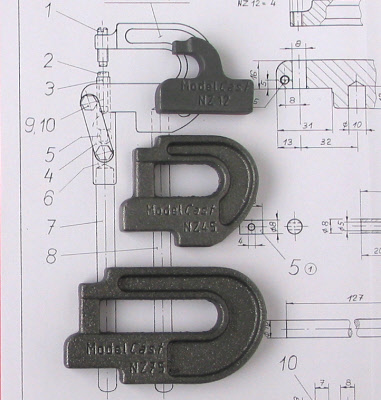

Drawing and three castings for riveting tool

!
800320

Pairs of snaps for rivets

!

Pairs of snaps for rivets, with ø 1.2mm

!
Zoom
801210
Head ø 2.0mm

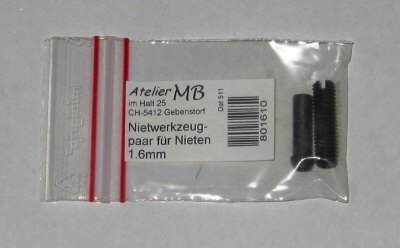

Pairs of snaps for rivets, with ø 1.6mm

!
Zoom
801610

Head ø 2.7mm

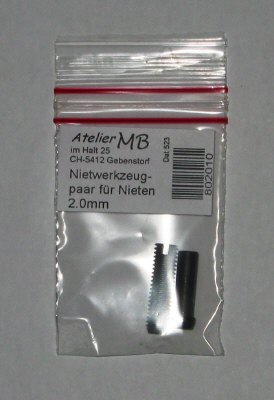

Pairs of snaps for rivets, with ø 2.0mm

!
Zoom
802010

Head ø 3.5mm

Pairs of snaps for rivets, with ø 2.4mm

!
Zoom
802410
Head ø 4.0mm
