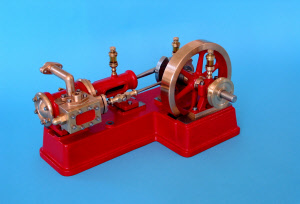

Ramona

Horizontal single cylinder steam engine or horizontal twin steam engine

  • base 195 x 111mm or 195 x 181mm
  • flywheel diameter 85mm
  • bore 16mm or 19mm
  • stroke 26mm

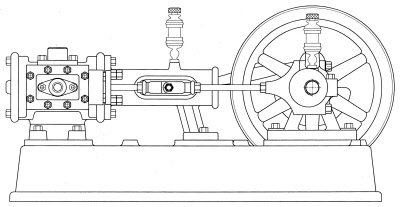

Drawings Ramona horizontal single cylinder steam engine

811140
    Delivery time:5-7 days within Germany
  • Description

Metric drawings by W. Schneeberger

showing all items on scale.

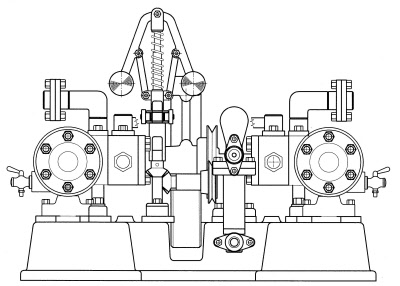

Drawings Ramona horizontal twin steam engine

811141
    Delivery time:5-7 days within Germany
  • Description

Metric drawings by W. Schneeberger

Set of metric drawings twin steam engine with water pump, governor and throttle valve

showing all items on scale.

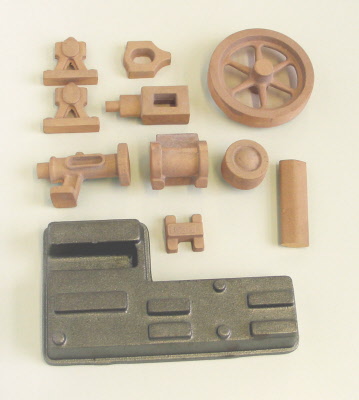

Set of castings for Ramona horizontal single cylinder steam engine

811198
    Delivery time:5-7 days within Germany

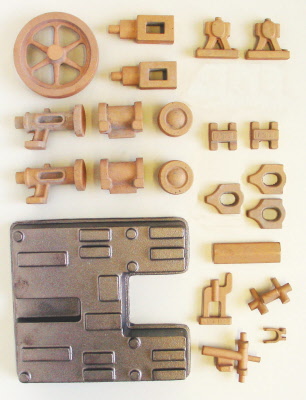

Set of castings for Ramona horizontal twin steam engine

811199
    Delivery time:5-7 days within Germany


Single castings

  • Description

Single castings

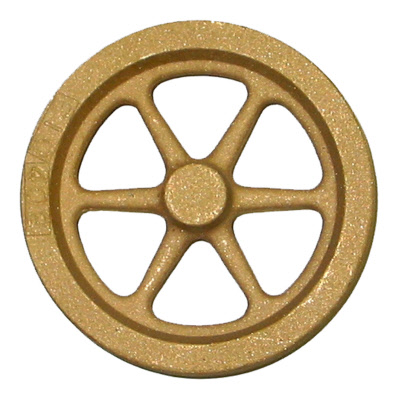

Flywheel, outer diameter: 90mm

810402
    Delivery time:5-7 days within Germany
  • Description

1 piece in set of castings for Ramona horizontal single steam engine.

1 piece in set of castings for Ramona horizontal twin steam engine.

Bearing housing in gunmetal

810902
    Delivery time:5-7 days within Germany
  • Description

2 pieces in set of castings for Ramona horizontal single steam engine.

2 pieces in set of castings for Ramona horizontal twin steam engine.

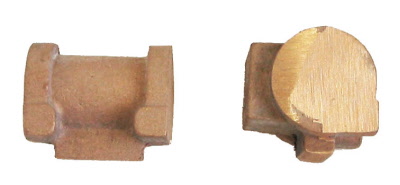

Cylinder casting in gunmetal

811133
    Delivery time:5-7 days within Germany
  • Description

1 piece in set of castings for Ramona horizontal single steam engine.

2 pieces in set of castings for Ramona horizontal twin steam engine.

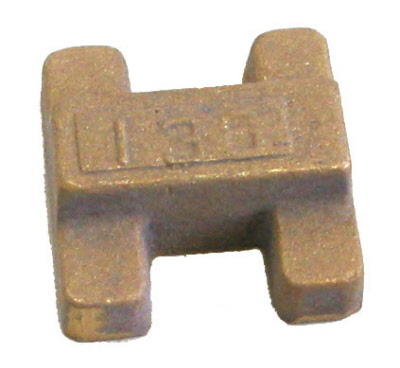

Support for cylinder in gunmetal

811136
    Delivery time:5-7 days within Germany
  • Description

1 piece in set of castings for Ramona horizontal single steam engine.

2 pieces in set of castings for Ramona horizontal twin steam engine.

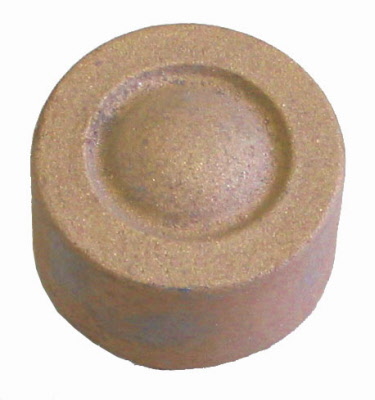

Cylinder cover in gunmetal

811134
    Delivery time:5-7 days within Germany
  • Description

1 piece in set of castings for Ramona horizontal single steam engine.

2 pieces in set of castings for Ramona horizontal twin steam engine.

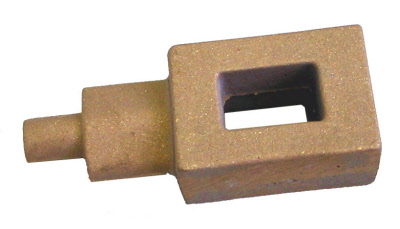

Steam chest in gunmetal

811135
    Delivery time:5-7 days within Germany
  • Description

1 piece in set of castings for Ramona horizontal single steam engine.

2 pieces in set of castings for Ramona horizontal twin steam engine.

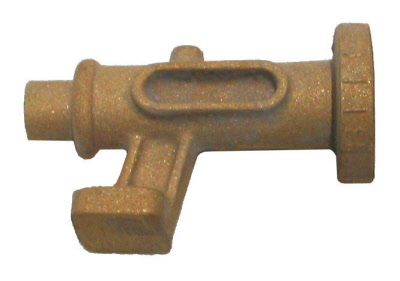

Crosshead slide in gunmetal

811137
    Delivery time:5-7 days within Germany
  • Description

1 piece in set of castings for Ramona horizontal single steam engine.

2 pieces in set of castings for Ramona horizontal twin steam engine.

Excentric strap in gunmetal

810915
    Delivery time:5-7 days within Germany
  • Description

1 piece in set of castings for Ramona horizontal single steam engine.

3 pieces in set of castings for Ramona horizontal twin steam engine.

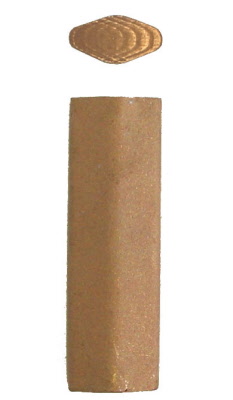

Flange material in gunmetal

811138
    Delivery time:5-7 days within Germany
  • Description

Size 23 x 12 x 70 mm

1 piece in set of castings for Ramona horizontal single steam engine.

1 piece in set of castings for Ramona horizontal twin steam engine.

Base in cast iron

810901
    Delivery time:5-7 days within Germany
  • Description
1 piece in set of castings for Ramona horizontal single steam engine.

Base in cast iron

811132
    Delivery time:5-7 days within Germany
  • Description
1 piece in set of castings for Ramona horizontal twin steam engine.

Main housing governor in gunmetal

811127
    Delivery time:5-7 days within Germany
  • Description
1 piece in set of castings for Ramona horizontal twin steam engine.

Governor lever in gunmetal

811128
    Delivery time:5-7 days within Germany
  • Description
1 piece in set of castings for Ramona horizontal twin steam engine.

Housing water pump in gunmetal

811129
    Delivery time:5-7 days within Germany
  • Description
1 piece in set of castings for Ramona horizontal twin steam engine.

T-connection in gunmetal

811130
    Delivery time:5-7 days within Germany
  • Description
1 piece in set of castings for Ramona horizontal twin steam engine.
