Little Kathy horizontal

Horizontal single cylinder steam engine or twin steam engine.

Specifications

  • base 100 x 45 mm or 100 x 87 mm

  • flywheel diameter 66 mm

  • bore 14 or 16 mm

  • stroke 19 mm

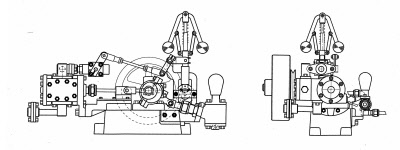

    Drawing Little Kathy horizontal

    811321
      Delivery time:5-7 days within Germany
    • Description

    Complete set of metric drawings with remote change, water pump, governor and throttle valve by W. Schneeberger. Showing all items on scale.

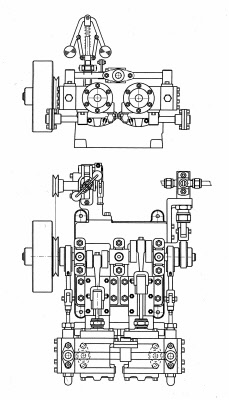

    Drawing Little Kathy horizontal twin

    811322
      Delivery time:5-7 days within Germany
    • Description

    Complete set of metric drawings with remote change, water pump, governor and throttle valve by W. Schneeberger. Showing all items on scale.

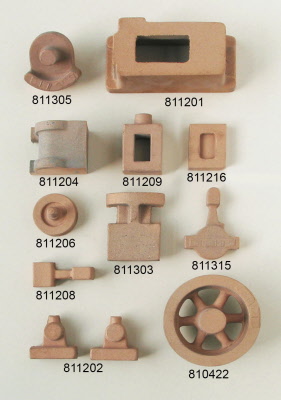

    Set of castings Little Kathy horizontal

    811300
      Delivery time:5-7 days within Germany

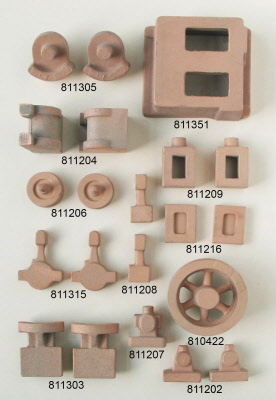

    Set of castings Little Kathy horizontal twin

    811350
      Delivery time:5-7 days within Germany


    Single castings

    • Description

    Single castings

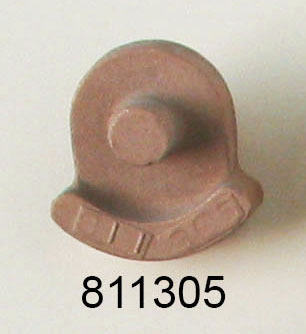

    Inner cylinder cover horizontal

    811305
      Delivery time:5-7 days within Germany
    • Description

    1 piece in set of castings for Little Kathy horizontal single steam engine.

    2 pieces in set of castings for Little Kathy horizontal twin steam engine.

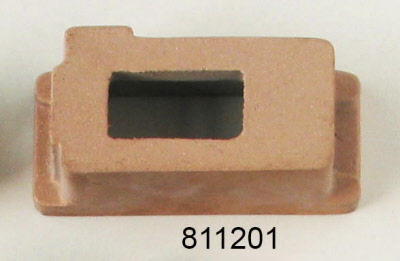

    Base Little Kathy for horizontal single engine

    811201
      Delivery time:5-7 days within Germany
    • Description

    1 piece in set of castings for Little Kathy horizontal single steam engine.

    Base Little Kathy for horizontal twin engine

    811351
      Delivery time:5-7 days within Germany
    • Description

    1 piece in set of castings for Little Kathy horizontal twin steam engine.

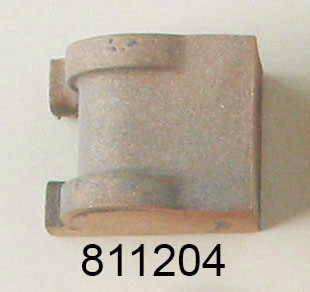

    Cylinder Little Kathy

    811204
      Delivery time:5-7 days within Germany
    • Description

    1 piece in set of castings for Little Kathy single steam engine.



    2 pieces in set of castings for Little Kathy twin steam engine.

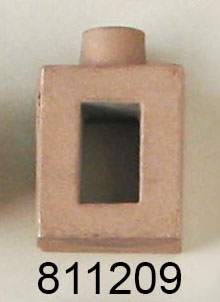

    Steam chest Little Kathy

    811209
      Delivery time:5-7 days within Germany
    • Description

    1 piece in set of castings for Little Kathy single steam engine.



    2 pieces in set of castings for Little Kathy twin steam engine.

    811216

    Steam chest cover Little Kathy

    811216
      Delivery time:5-7 days within Germany
    • Description

    1 piece in set of castings for Little Kathy single steam engine.



    2 pieces in set of castings for Little Kathy twin steam engine.

    Outer cylinder cover Little Kathy

    811206
      Delivery time:5-7 days within Germany
    • Description

    1 piece in set of castings for Little Kathy single steam engine.



    2 pieces in set of castings for Little Kathy twin steam engine.

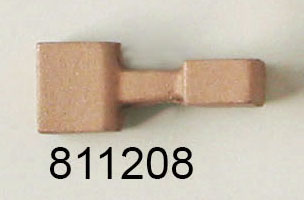

    Connecting rod Little Kathy

    811208
      Delivery time:5-7 days within Germany
    • Description

    1 piece in set of castings for Little Kathy single steam engine.



    2 pieces in set of castings for Little Kathy twin steam engine.

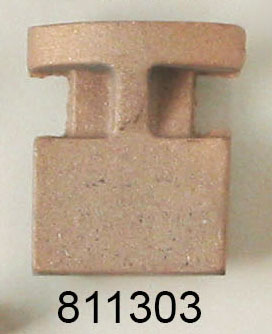

    Crosshead slide Little Kathy

    811303
      Delivery time:5-7 days within Germany
    • Description

    1 piece in set of castings for Little Kathy horizontal single steam engine.



    2 pieces in set of castings for Little Kathy horizontal twin steam engine.

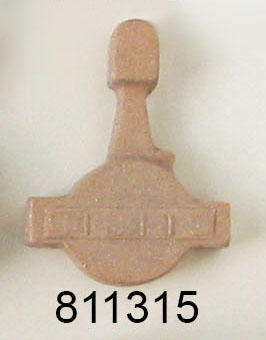

    Symmetrical excentric strap Little Kathy

    811315
      Delivery time:5-7 days within Germany
    • Description

    1 piece in set of castings for Little Kathy single steam engine.



    2 pieces in set of castings for Little Kathy twin steam engine.



    An additional piece is required for the variation with water pump.

    Bearing housing Little Kathy

    811202
      Delivery time:5-7 days within Germany
    • Description

    2 piece in set of castings for Little Kathy horizontal single steam engine.



    2 pieces in set of castings for Little Kathy horizontal twin steam engine.

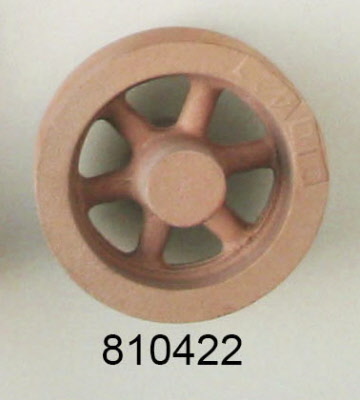

    Flywheel 70mm Little Kathy

    810422
      Delivery time:5-7 days within Germany
    • Description

    1 piece in set of castings for Little Kathy single steam engine.



    1 pieces in set of castings for Little Kathy twin steam engine.

    Bearing housing middle Little Kathy

    811207
      Delivery time:5-7 days within Germany
    • Description

    1 piece in set of castings for Little Kathy horizontal twin steam engine.

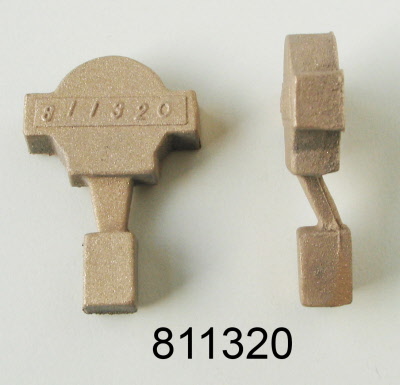

    Cranked excentric strap Little Kathy

    811320
      Delivery time:5-7 days within Germany
    • Description

    Cranked excenteric strap for Stephenson remote change.

    For the single cylinder engine two pieces are required, for the twin engine four pieces are required. The cranked excentric straps replaces the symmetrical excentric strap.

    Main housing governor in gunmetal

    811127
      Delivery time:5-7 days within Germany

    Governor lever in gunmetal

    811128
      Delivery time:5-7 days within Germany

    Support governor in gunmetal

    810865
      Delivery time:5-7 days within Germany

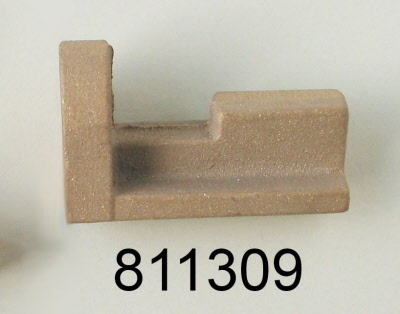

    Bevel plate for water pump

    811309
      Delivery time:5-7 days within Germany

    Elbow material 55x40mm, ø10mm

    810392
      Delivery time:5-7 days within Germany

    Flange material 70x19x11mm

    810393
      Delivery time:5-7 days within Germany
